Inspection on the Move.
Self-contained mobile scanning systems deployed by vehicle. Built for rapid-response checkpoints, border controls, and temporary screening operations.

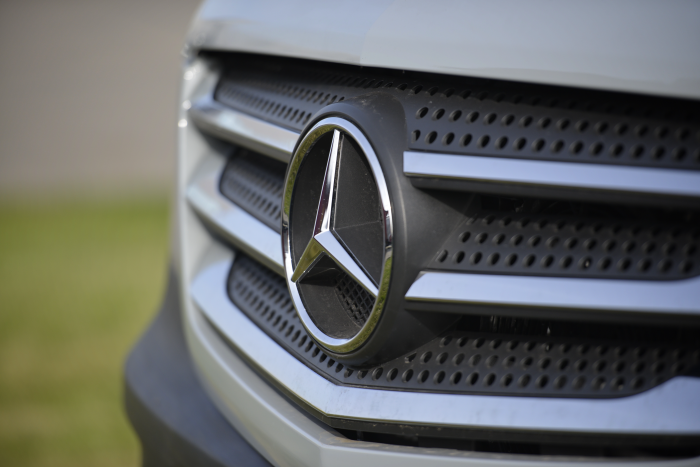

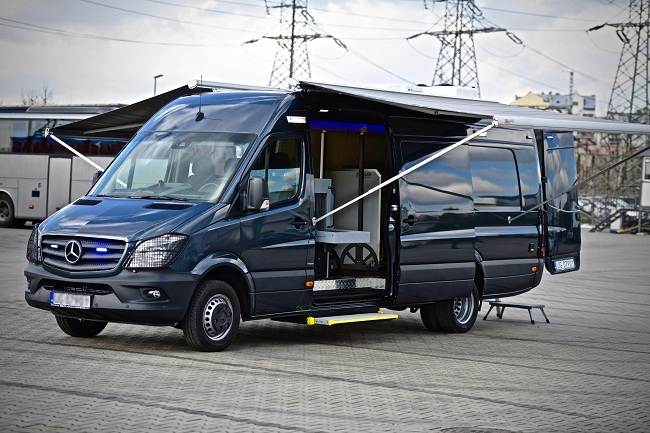

Mercedes-Benz Sprinter
Built on a proven 5-ton chassis with a 2.1L 120kW engine. Available in 4×2 or 4×4 configurations with automatic transmission. Adaptive ESP and crosswind assist keep the vehicle stable under load.
2143 cm³
120 kW
1 + 2
Operator + security
4×2 / 4×4
Selectable
5 T
Total
Fully Self-Contained.
Deep Penetration
27 mm steel penetration with high-resolution imaging. Distinguish organic from inorganic materials automatically.
Independent Power
Onboard generator and UPS backup. Operates autonomously at remote locations without grid connection.
All-Climate Ready
Engineered for continuous operation from −10°C to +40°C. Climate-controlled operator cabin included.
Full Monitoring

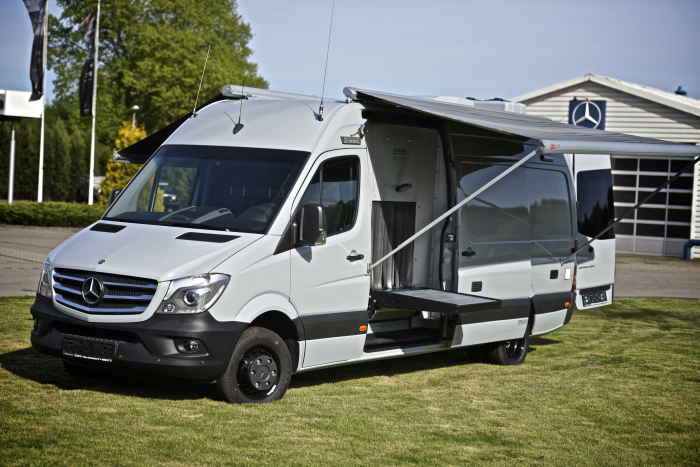

Three surveillance cameras cover the tunnel interior. Operator cabin features dual Full HD displays and surround-view monitors.
Touch Control
Profile-based control panel adjusts lighting, cabin temperature, and scanning parameters with a few taps.
Radiation Safe
Composite shielding minimizes weight while keeping radiation dose below 1 μSv/h at 10 cm from the housing.
Three Tunnel Sizes.
1000
mm × 1000 mm
Large Cargo
800
mm × 800 mm
Standard
600
mm × 400 mm
Compact
Next
Integrated imaging software with adaptive sharpening, auto-contrast, and edge enhancement. Unique color parameterization defines unlimited density ranges for precise material classification.
- check_circle Automatic threat identification
- check_circle Unlimited color density ranges
- check_circle 38 AWG resolution
1–2
38 AWG
100–300 kV
2×
Need a mobile screening unit?
Contact us to discuss deployment configurations, tunnel sizes, and integration with your checkpoint infrastructure.
